SS 430 Serrated Clamp
Serrated Clamps
Specification-led serrated clamp page built from the supplied Word document, including SS 430 construction, DIN 3017 quality reference, drawing dimensions, and Astra part-code size range.
Specification Overview
Product Details
The document identifies the serrated clamp range by Astra part code, closed diameter, open diameter, SS 430 construction, W3-SER raw material code, and DIN 3017 quality reference.

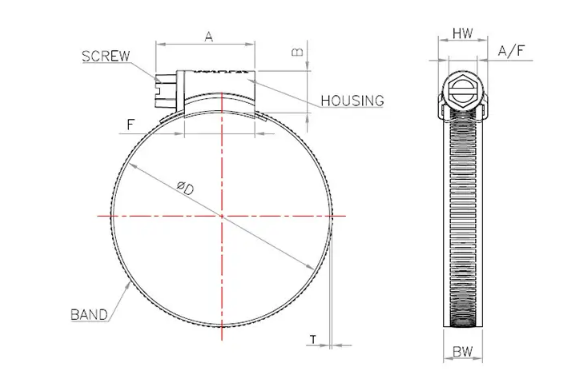

Drawing Callouts
Technical drawing and construction details
The drawing shows the screw, housing, band, diameter line, side profile, band width, housing width, and dimensional callouts used for specification review.
Construction Table
SS 430 material and measurement specification
| Specification | Value |
|---|---|
| Band and housing | SS 430 |
| Screws | SS 430 |
| Raw material code | W3-SER |
| Band width BW | 12 mm |
| Housing width HW | 15 mm |
| Band thickness | 0.8 mm |
| Screw | 7 mm head - slotted |
| Housing length A | 31 mm max |
| Edges | Rounded |
| Band sedation | One side sedation only |
| Quality | As per DIN 3017 |
Size Range
Astra part-code diameter table
Use this table to select the required serrated clamp by part code, closed diameter, and open diameter from the supplied specification.
| Part code | Closed dia (mm) | Open dia (mm) |
|---|---|---|
| AIG1 | 18 | 25 |
| AIG2 | 20 | 32 |
| AIG3 | 22 | 33 |
| AIG4 | 25 | 35 |
| AIG5 | 30 | 40 |
| AIG6 | 30 | 45 |
| AIG7 | 38 | 50 |
| AIG8 | 42 | 55 |
| AIG9 | 50 | 60 |
| AIG10 | 55 | 75 |
| AIG11 | 60 | 80 |
| AIG12 | 70 | 90 |
| AIG13 | 80 | 100 |
| AIG14 | 90 | 110 |
| AIG15 | 95 | 115 |
| AIG16 | 100 | 120 |
| AIG17 | 110 | 130 |
| AIG18 | 125 | 145 |
| AIG19 | 140 | 160 |
Serrated grip
Serrated construction supports a firm bite and stable hose sealing behavior in utility and industrial fastening conditions.
DIN quality reference
The supplied specification lists quality as per DIN 3017 for this serrated clamp range.
Specification ready
Part code, closed diameter, open diameter, material, and drawing dimensions are available for faster enquiry review.
